Wall Box Charger

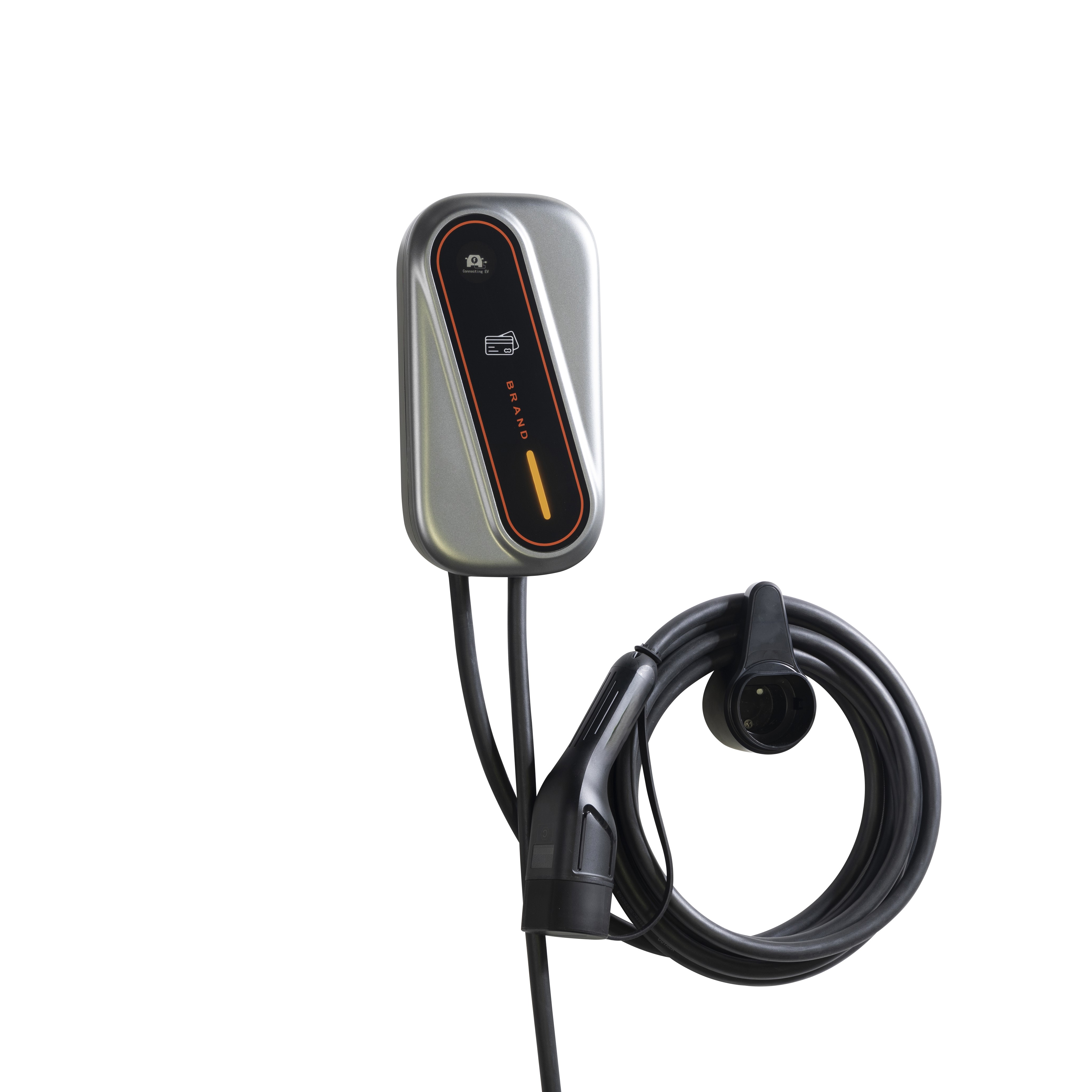

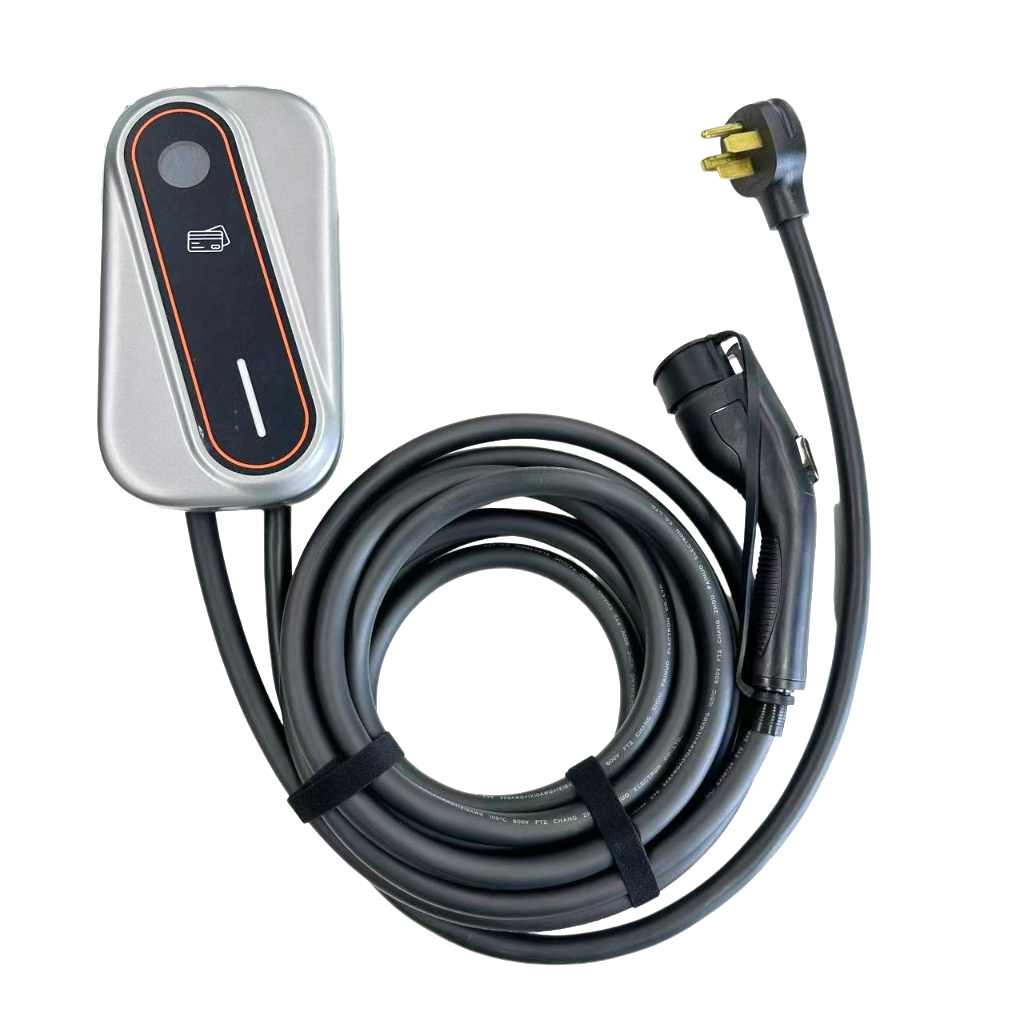

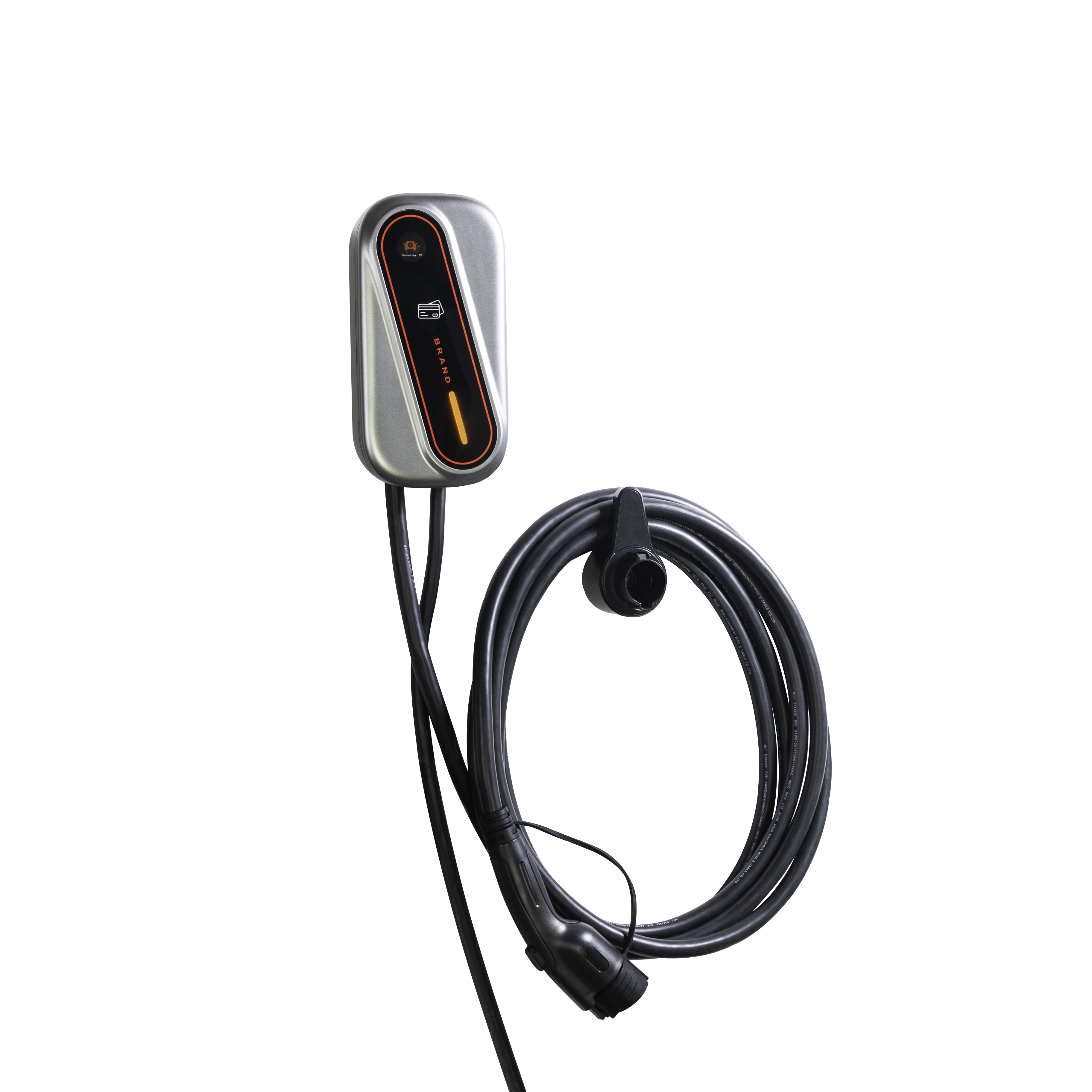

50A 12kW 240V Wall Box EV Charger
50A 12kW 240V Wall Box EV Charger. 3.5kW ~ 12Kw / 11Kw / 22Kw output, Type1/Type2/ Tesla/GBT + 5M charging cable. Certified TUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc.. Ideal for home and commercial charging.
| Model | EVCAV-1P32-M3T2-C1, EVCAV-1P32-M3T2-C2, EVCAV-3P32-M3T2-C1, EVCAV-3P32-M3T2-C2, EVCAV-3P16-M3T2-C1, EVCAV-3P16-M3T2-C2, EVCAV-1P32-M3T2-C1UK, EVCAV-1P32-M3T2-C2UK, EVCAV-3P32-M3T2-C1UK, EVCAV-3P32-M3T2-C2UK, EVCAV-3P16-M3T2-C1UK, EVCAV-3P16-M3T2-C2UK |
| Voltage | 110~250V / 380~450V AC±15% |
| Max Output Current | 16A / 32A / 40A / 50A（5~50A adjustable） |
| Max Out Power | 3.5kW ~ 12Kw / 11Kw / 22Kw |
| Frequency | 50 / 60Hz |
| Residual current protection | Type B (AC 30mA + DC 6mA) |
| Installation Method | Wall mounted |
| Charging Outlet | Type1/Type2/ Tesla/GBT + 5M charging cable |
| Power incoming line | 1M |
| Total cable length | > 5M |
| Housing Material | PC+ABS (L: 300mm, W: 160mm, H: 120mm) |
| Certificate | TUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc. |
| Warranty | 2 years |
Price: Contact for Quote
