16A 32A Mode 3 Wall Box EV Charger 7-22kW
Wall Box Charger

16A 32A Mode 3 Wall Box EV Charger 7-22kW

16A 32A Mode 3 Wall Box EV Charger 7-22kW. 3.5kW ~ 12Kw / 11Kw / 22Kw output, Type1/Type2/ Tesla/GBT + 5M charging cable. Certified TUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc.. Ideal for home and commercial charging.

ModelEVCAV-1P32-M3T2-C1, EVCAV-1P32-M3T2-C2, EVCAV-3P32-M3T2-C1, EVCAV-3P32-M3T2-C2, EVCAV-3P16-M3T2-C1, EVCAV-3P16-M3T2-C2, EVCAV-1P32-M3T2-C1UK, EVCAV-1P32-M3T2-C2UK, EVCAV-3P32-M3T2-C1UK, EVCAV-3P32-M3T2-C2UK, EVCAV-3P16-M3T2-C1UK, EVCAV-3P16-M3T2-C2UK
Voltage110~250V / 380~450V AC±15%
Max Output Current16A / 32A / 40A / 50A（5~50A adjustable）
Max Out Power3.5kW ~ 12Kw / 11Kw / 22Kw
Frequency50 / 60Hz
Residual current protectionType B (AC 30mA + DC 6mA)
Installation MethodWall mounted
Charging OutletType1/Type2/ Tesla/GBT + 5M charging cable
Power incoming line1M
Total cable length> 5M
Housing MaterialPC+ABS (L: 300mm, W: 160mm, H: 120mm)
CertificateTUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc.
Warranty2 years
Price: Contact for Quote
Inquiry on WhatsApp ✉️ Send Email Inquiry Contact Us

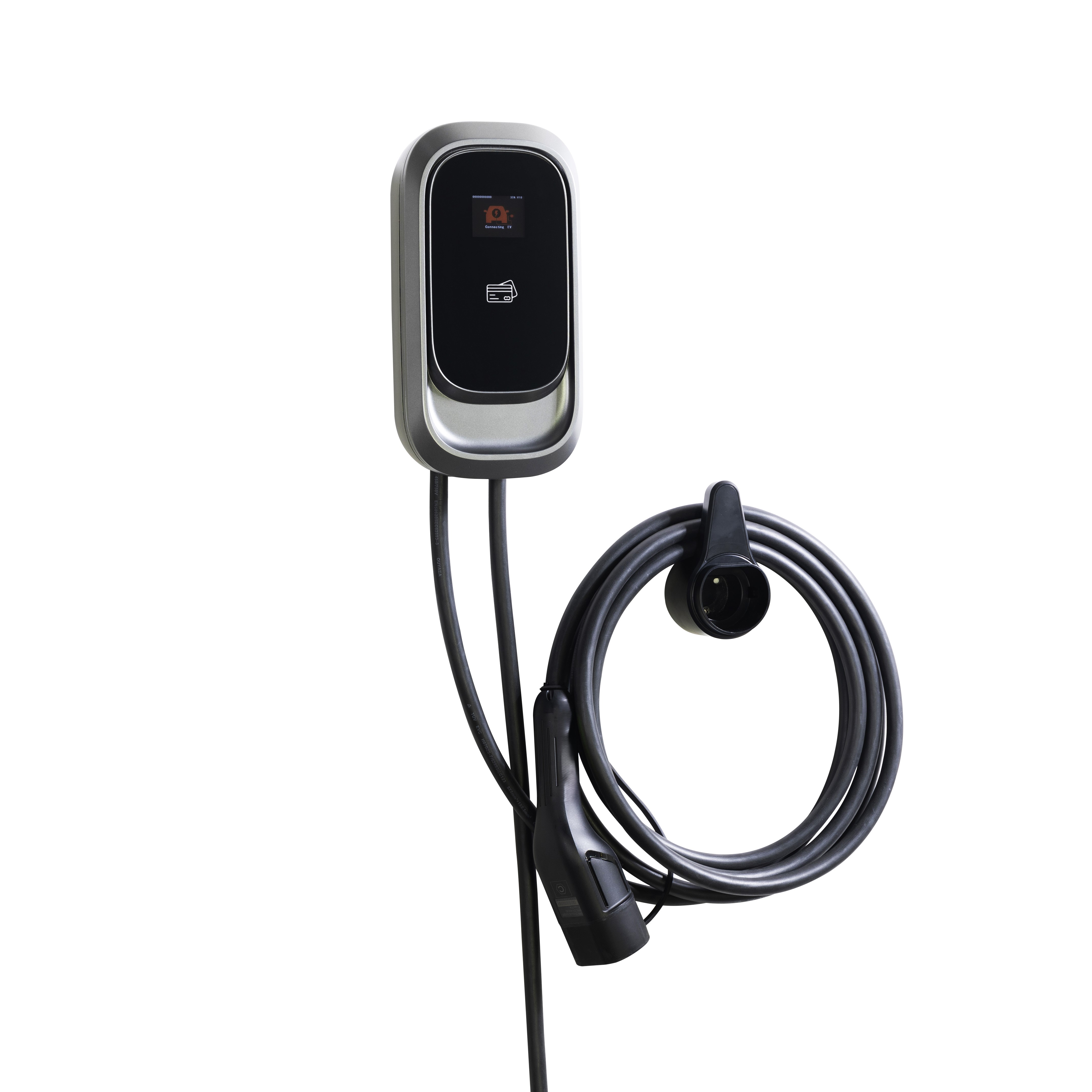

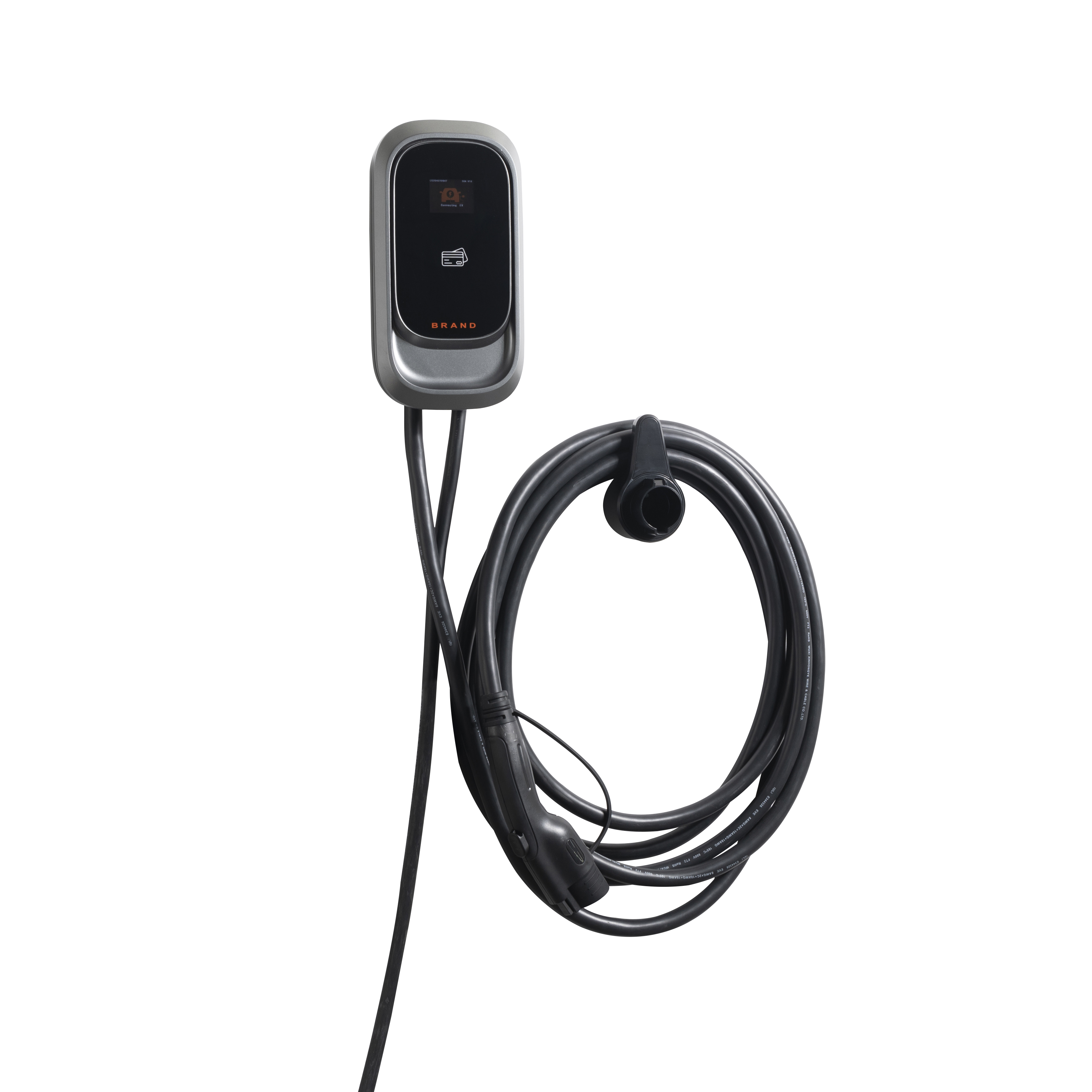

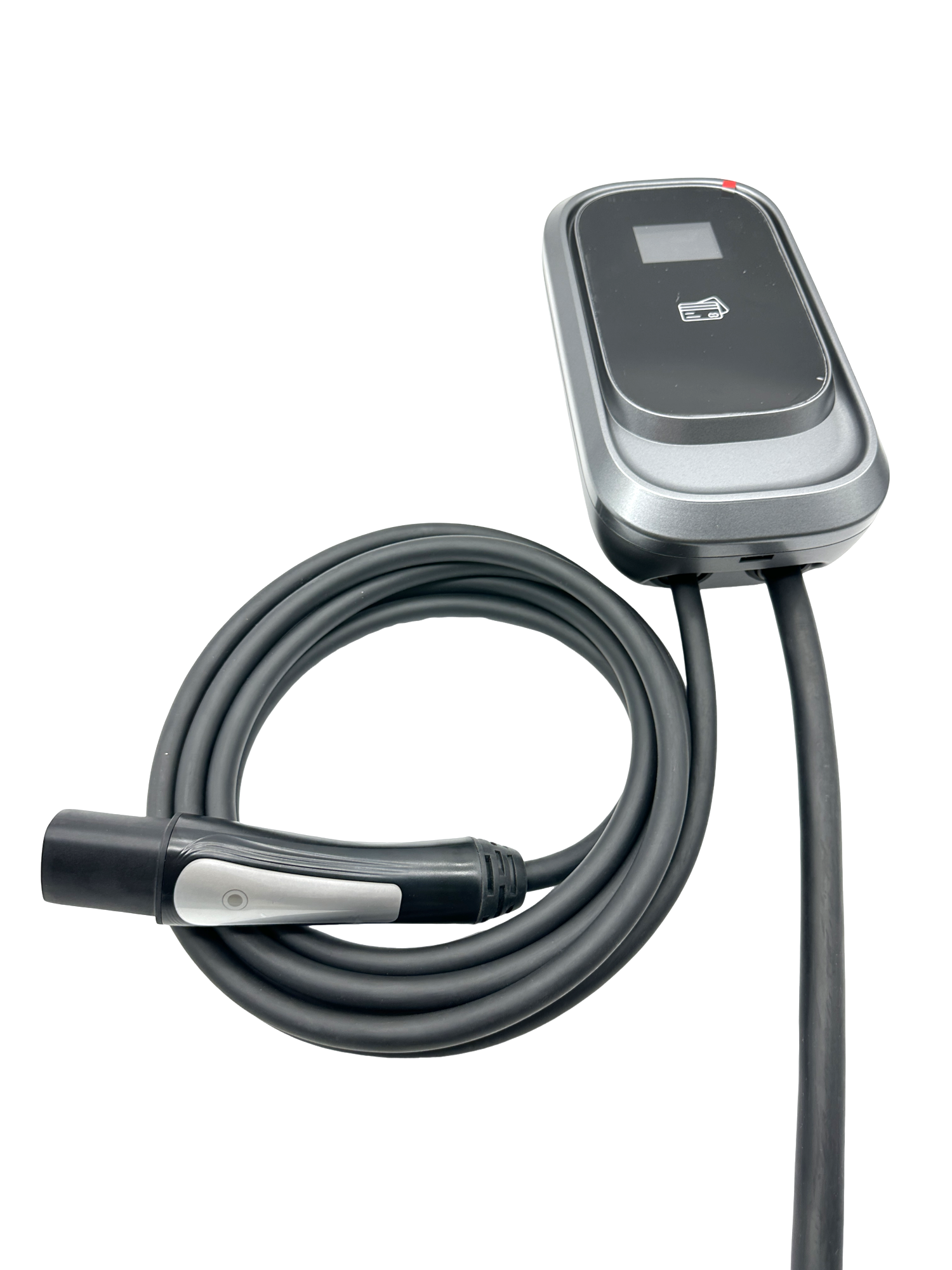

BESTAR 16A 32A Mode 3 Wall Box EV Charger 7-22kW is a wall-mounted AC charging station designed for reliable daily charging. It supports 110~250V / 380~450V AC±15% with 3.5kW ~ 12Kw / 11Kw / 22Kw output and Type1/Type2/ Tesla/GBT + 5M charging cable.

Built with Type B residual current protection (Type B (AC 30mA + DC 6mA)) and multiple safety protections, it delivers safe, stable charging for homes, workplaces and commercial fleets. Certified TUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc..

  • ✓ Wall-mounted, space-saving design
  • ✓ 3.5kW ~ 12Kw / 11Kw / 22Kw output
  • ✓ Type1/Type2/ Tesla/GBT + 5M charging cable
  • ✓ Type B residual current protection
  • ✓ TUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc.
ParameterValue
ModelEVCAV-1P32-M3T2-C1, EVCAV-1P32-M3T2-C2, EVCAV-3P32-M3T2-C1, EVCAV-3P32-M3T2-C2, EVCAV-3P16-M3T2-C1, EVCAV-3P16-M3T2-C2, EVCAV-1P32-M3T2-C1UK, EVCAV-1P32-M3T2-C2UK, EVCAV-3P32-M3T2-C1UK, EVCAV-3P32-M3T2-C2UK, EVCAV-3P16-M3T2-C1UK, EVCAV-3P16-M3T2-C2UK
Voltage110~250V / 380~450V AC±15%
Max Output Current16A / 32A / 40A / 50A（5~50A adjustable）
Max Out Power3.5kW ~ 12Kw / 11Kw / 22Kw
Frequency50 / 60Hz
Residual current protectionType B (AC 30mA + DC 6mA)
Installation MethodWall mounted
Charging OutletType1/Type2/ Tesla/GBT + 5M charging cable
Power incoming line1M
Total cable length> 5M
Housing MaterialPC+ABS (L: 300mm, W: 160mm, H: 120mm)
CertificateTUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc.
Warranty2 years

Home Charging

Reliable overnight charging for households and apartments.

Commercial & Workplace

Fleet and employee charging solutions for businesses.

Travel & Emergency

Portable charging anywhere with a standard outlet.

OEM & Integration

Certified PCBA boards for your own charging products.
