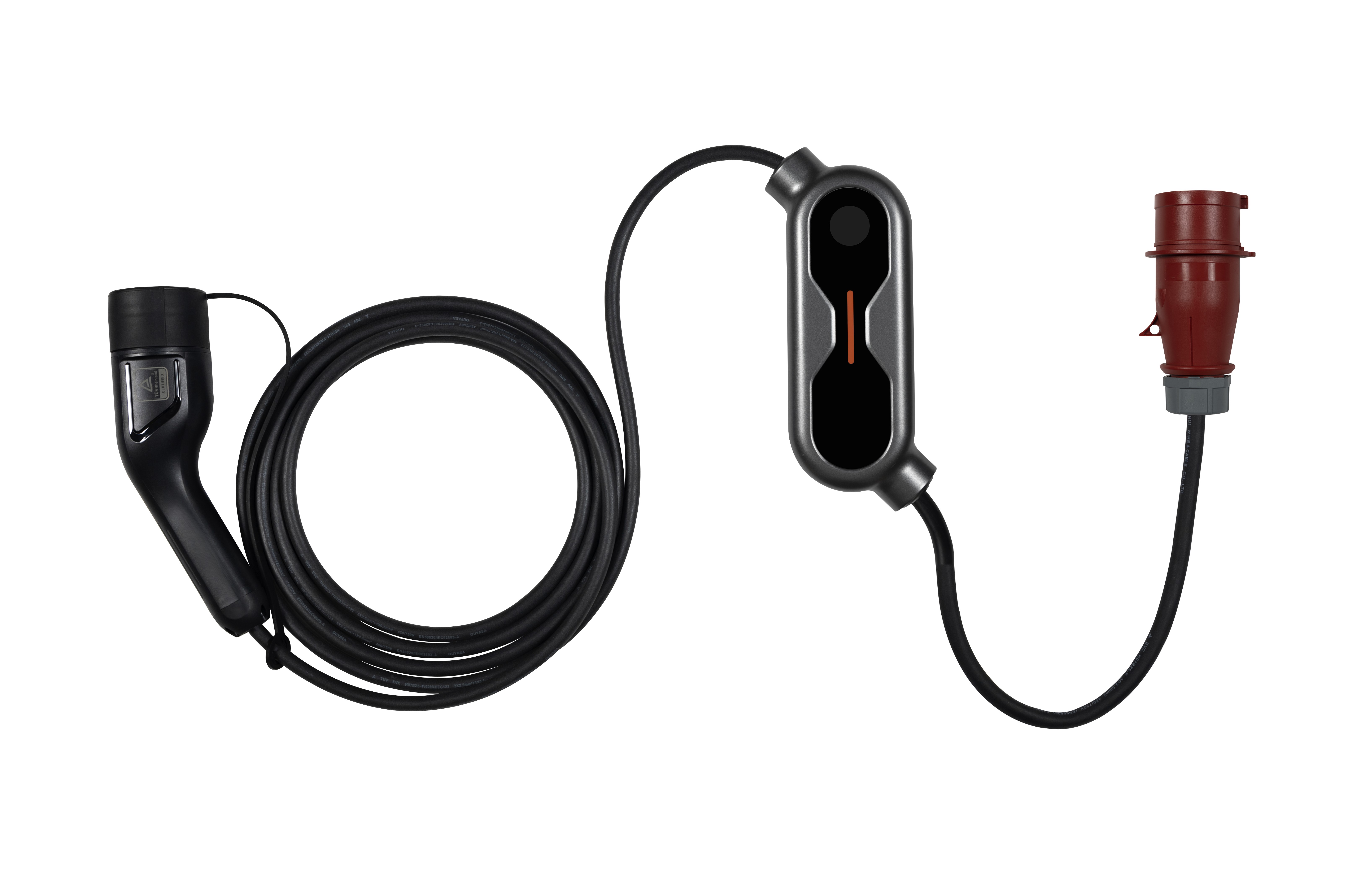

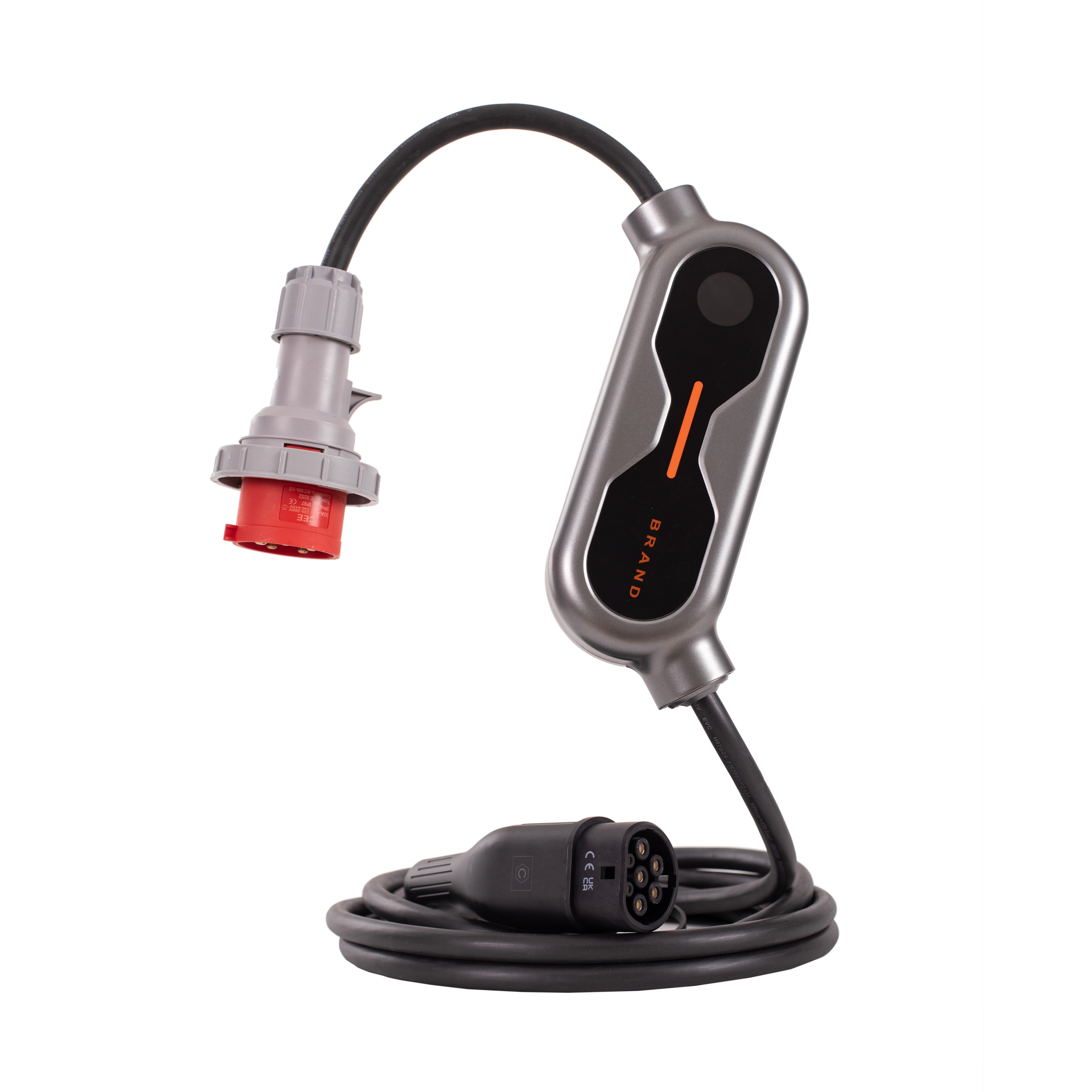

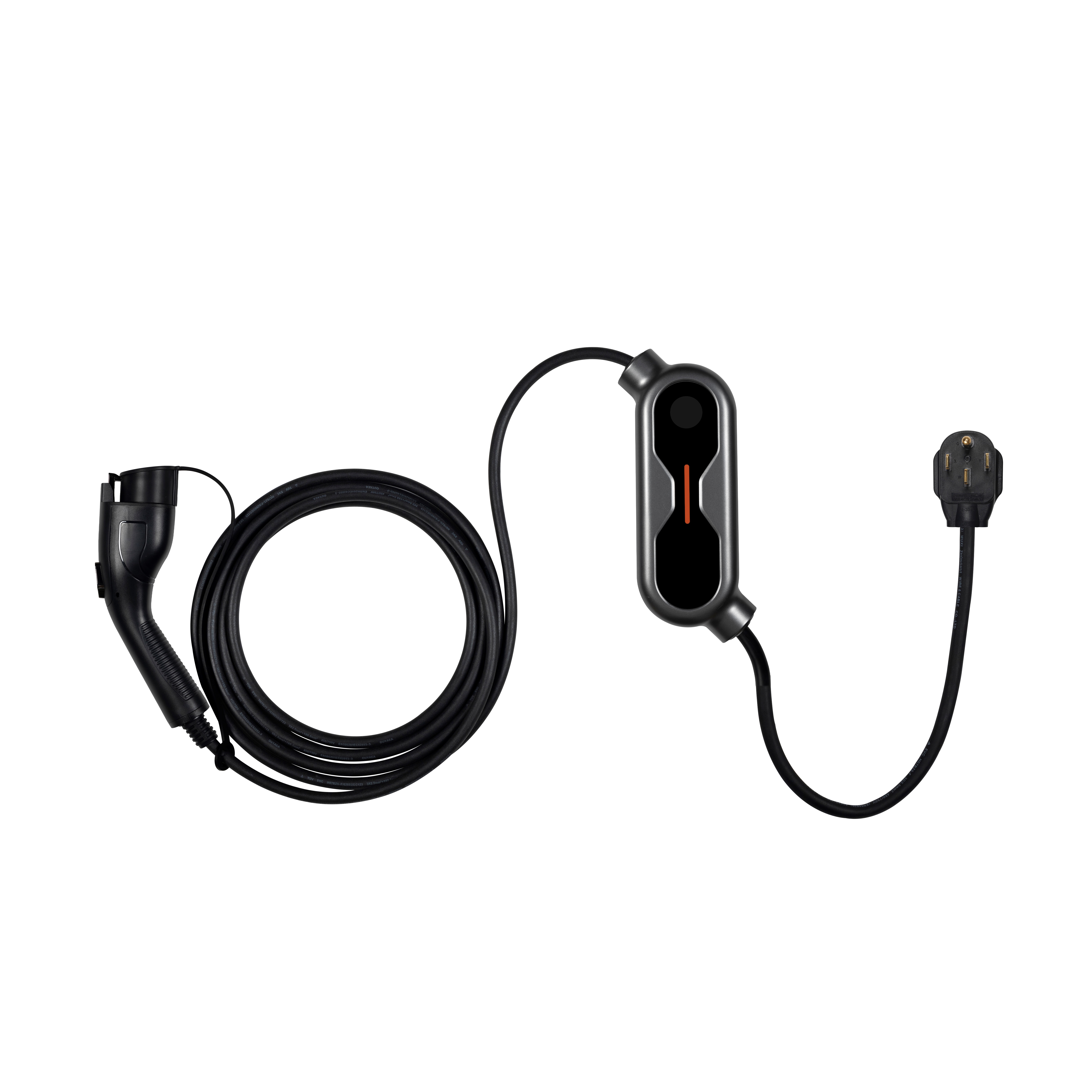

11kW 22kW Portable Mode 2 EV Charger
Portable Charger

11kW 22kW Portable Mode 2 EV Charger

11kW 22kW Portable Mode 2 EV Charger. 11kW / 22kW output, Type2/GBT + 4.5M charging cable, TUV, CB, CE, RoHS, REACH. Plug-and-play portable charging for home and travel.

ModelEVCA-3P16-M2T2-IEC1, EVCA-3P32-M2T2-IEC1, EVCA-3P16-M2T2-IEC2, EVCA-3P32-M2T2-IEC2, EVCA-3P16-M2T2-IEC3, EVCA-3P32-M2T2-IEC3, EVCA-3P16-M2T2-IEC4, EVCA-3P32-M2T2-IEC4,EVCA-1P16-M2T2-IEC1, EVCA-1P32-M2T2-IEC1, EVCA-1P16-M2T2-IEC2, EVCA-1P32-M2T2-IEC2, EVCA-1P16-M2T2-IEC3, EVCA-1P32-M2T2-IEC3, EVCA-1P16-M2T2-IEC4, EVCA-1P32-M2T2-IEC4,
Voltage380~450V AC
Max Output Current16A / 32A（ 6 / 8 / 10 / 13 / 16 / 25 / 32A Adjustable）
Max Out Power11kW / 22kW
Frequency50 / 60Hz
Residual current protectionType B (AC 30mA + DC 6mA )
Installation MethodPortable/Wall mounted
Charging OutletType2/GBT + 4.5M charging cable
Power incoming line0.5M
Total cable length> 5M
Housing MaterialPC+ABS ( L: 300mm, W: 104.2mm, H: 68.3mm )
CertificateTUV, CB, CE, RoHS, REACH
Warranty2 year
LED Indicator / Display ScreenBlue/Green/Red, 2.4 inch
LED Indicator / Display ScreenBlue/Green/Red, 2.4 inch
Price: Contact for Quote
Inquiry on WhatsApp ✉️ Send Email Inquiry Contact Us

BESTAR 11kW 22kW Portable Mode 2 EV Charger is a portable Mode 2 / Level 2 charging cable that delivers up to 11kW / 22kW anywhere there is a standard power outlet. Just plug in and charge.

Featuring Type B residual current protection (Type B (AC 30mA + DC 6mA )) and a 4.5-5M charging cable, it is the perfect companion for home, travel and emergency charging. Certified TUV, CB, CE, RoHS, REACH.

  • ✓ True plug-and-play portability
  • ✓ 11kW / 22kW output
  • ✓ Type2/GBT + 4.5M charging cable
  • ✓ Type B residual current protection
  • ✓ TUV, CB, CE, RoHS, REACH
ParameterValue
ModelEVCA-3P16-M2T2-IEC1, EVCA-3P32-M2T2-IEC1, EVCA-3P16-M2T2-IEC2, EVCA-3P32-M2T2-IEC2, EVCA-3P16-M2T2-IEC3, EVCA-3P32-M2T2-IEC3, EVCA-3P16-M2T2-IEC4, EVCA-3P32-M2T2-IEC4,EVCA-1P16-M2T2-IEC1, EVCA-1P32-M2T2-IEC1, EVCA-1P16-M2T2-IEC2, EVCA-1P32-M2T2-IEC2, EVCA-1P16-M2T2-IEC3, EVCA-1P32-M2T2-IEC3, EVCA-1P16-M2T2-IEC4, EVCA-1P32-M2T2-IEC4,
Voltage380~450V AC
Max Output Current16A / 32A（ 6 / 8 / 10 / 13 / 16 / 25 / 32A Adjustable）
Max Out Power11kW / 22kW
Frequency50 / 60Hz
Residual current protectionType B (AC 30mA + DC 6mA )
Installation MethodPortable/Wall mounted
Charging OutletType2/GBT + 4.5M charging cable
Power incoming line0.5M
Total cable length> 5M
Housing MaterialPC+ABS ( L: 300mm, W: 104.2mm, H: 68.3mm )
CertificateTUV, CB, CE, RoHS, REACH
Warranty2 year
LED Indicator / Display ScreenBlue/Green/Red, 2.4 inch
LED Indicator / Display ScreenBlue/Green/Red, 2.4 inch

Home Charging

Reliable overnight charging for households and apartments.

Commercial & Workplace

Fleet and employee charging solutions for businesses.

Travel & Emergency

Portable charging anywhere with a standard outlet.

OEM & Integration

Certified PCBA boards for your own charging products.
